✅ Designed for underwater applications no need of priming and foot value. Easy installation - foundation and installation platform not required.

✅ Can withstand wide voltage fluctuations 180 - 415 Volts.

✅ Non overloading power characteristics - no fear of motor burning. Dynamically balance rotating parts ensure minimum vibrations. Replaceable wearing parts and hence longer life.

✅ Easy maintenance and spares availability - needs only one spanner for maintenance.

✅ CED Coated CI Components for long life & rust free operation.

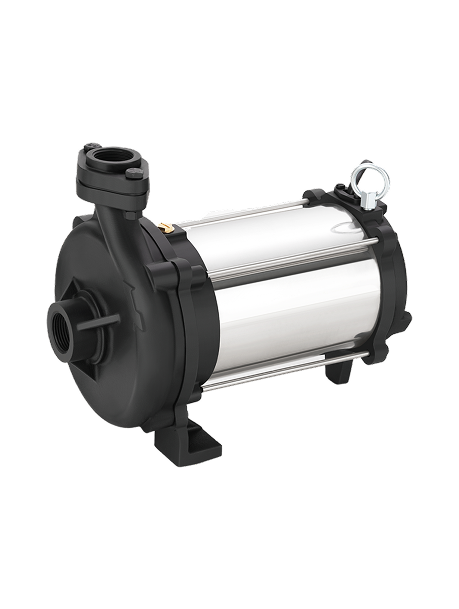

Horizontal Openwell Pump 2800 RPM Single Phase/ Double Phase/ Three Phase At Rated Voltage
180 - 240V / 240 - 350V / 380 - 415V, 50 HZ AC Supply

Model	KW	HP	Suc x Del Size in mm	Total Head in Meters
				4	6	8	10	12	14	16	18	20	22	24	26	28	30
				Discharge in LPM
KOP - 200 H	1.50	2.00	50 X 50	595	560	530	480	440	400	350	300	230
KOP - 200 L	1.50	2.00	65 X 50	600	570	510	480	430	380	320	180
KOP - 300 H	2.25	3.00	65 X 50	470	450	440	430	420	410	380	350	315	260	220	160
KOP - 300 L	2.25	3.00	80 X 80	905	870	780	690	590	450	250	230
