✅ Designed for underwater applications no need of priming and foot value.

✅ Easy installation - foundation and installation platform not required. Can withstand wide voltage fluctuations 180 - 230 Volts.

✅ Non overloading power characteristics - no fear of motor burning.

✅ Dynamically balance rotating parts ensure minimum

vibrations. Replaceable wearing parts and hence longer life.

✅ Easy maintenance and spares availability - needs only one spanner for maintenance.

✅ CED Coated CI Components for long life & rust free operation.

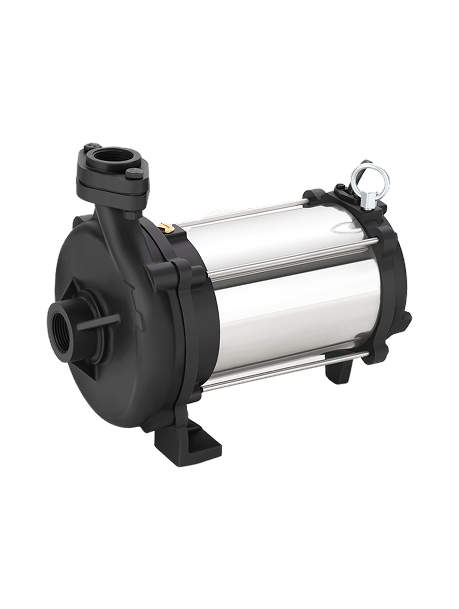

Openwell Pump Sets - (Mini Pumps 0.5 HP to 1 HP) SS Body Copper & Aluminium Rotor Without Panel
Horizontal Openwell Submersible Pump Set - 2800 RPM - Single Phase 180 - 230V 50 - HZ AC Supply

Model	KW	HP	Suc x Del Size in mm	RPM	Total Head in Meters
					3	6	9	12	15	18	21	24	27	30	33	36	39	42
					Discharge in LPM
KOP - 50	0.37	0.50	25 X 25	2880	165	150	120	98	70	30
KOP - 100	0.75	1.00	25 X 25	2880	240	220	200	185	165	150	120	95	50	15
KOP - 50 CR	0.37	0.50	25 X 25	2850	190	165	150	120	90	40
KOP - 100 CR	0.75	1.00	25 X 25	2850	205	195	175	165	140	130	100	75	28
